bluSensor® Gateway
Connect Sensors to the Cloud.
The bluSensor® Cloud supports both our own bluSensor® BLE Gateways and compatible LoRaWAN gateways from other manufacturers. Access your sensor data anytime, from anywhere: app.blusensor.com
The bluSensor® Cloud supports both our own bluSensor® BLE Gateways and compatible LoRaWAN gateways from other manufacturers. Access your sensor data anytime, from anywhere: app.blusensor.com
The gateway supports all bluSensor® Bluetooth Low Energy sensors. Capture temperature, humidity, air quality, CO₂, particulate matter and other readings – automatically and in real time.
In addition to our own BLE gateways, the bluSensor® Cloud also supports compatible LoRaWAN gateways from other manufacturers. Ideal for long range and locations without Wi-Fi infrastructure.
Receives Eddystone and iBeacon compatible Bluetooth beacons. Ideal for asset tracking, location monitoring and presence detection in buildings and warehouses.
The gateway is fully managed via the bluSensor® Cloud. Assign sensors, change configuration and perform firmware updates – all remotely without physical access to the device.
All data transmission is encrypted via TLS. Each gateway receives a unique certificate for a secure and authenticated connection to the bluSensor® Cloud.
Compatible LoRaWAN gateways support 4G / LTE with SIM card in addition to Ethernet and Wi-Fi. In case of connection loss, WAN failover automatically switches to the mobile network.

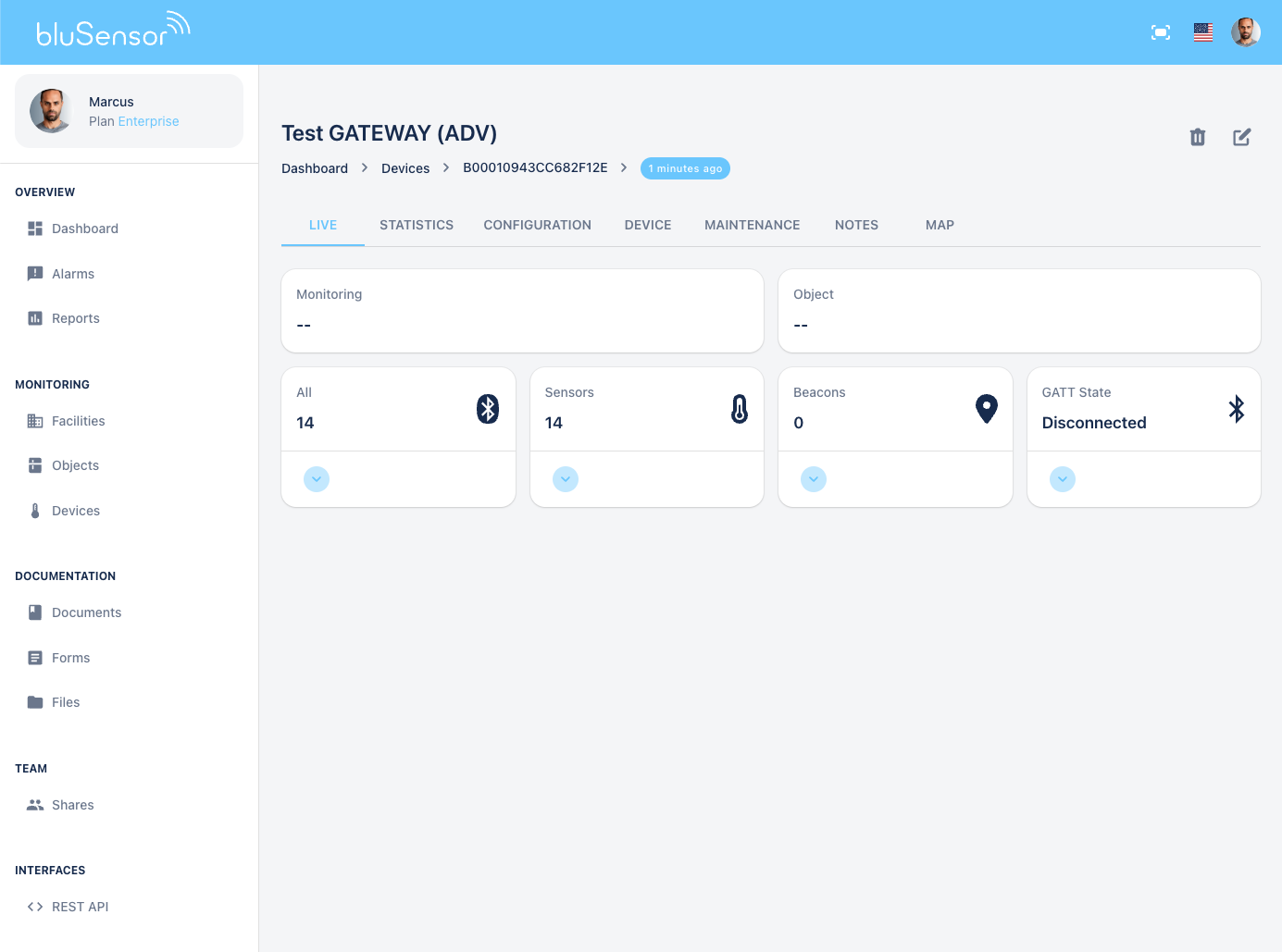

The bluSensor® Gateway is fully managed via the bluSensor® Cloud. Through the Cloud Dashboard you can configure your gateway, assign sensors, perform firmware updates and monitor device status – all remotely without physical access to the device. Configuration changes are automatically transmitted to the gateway.

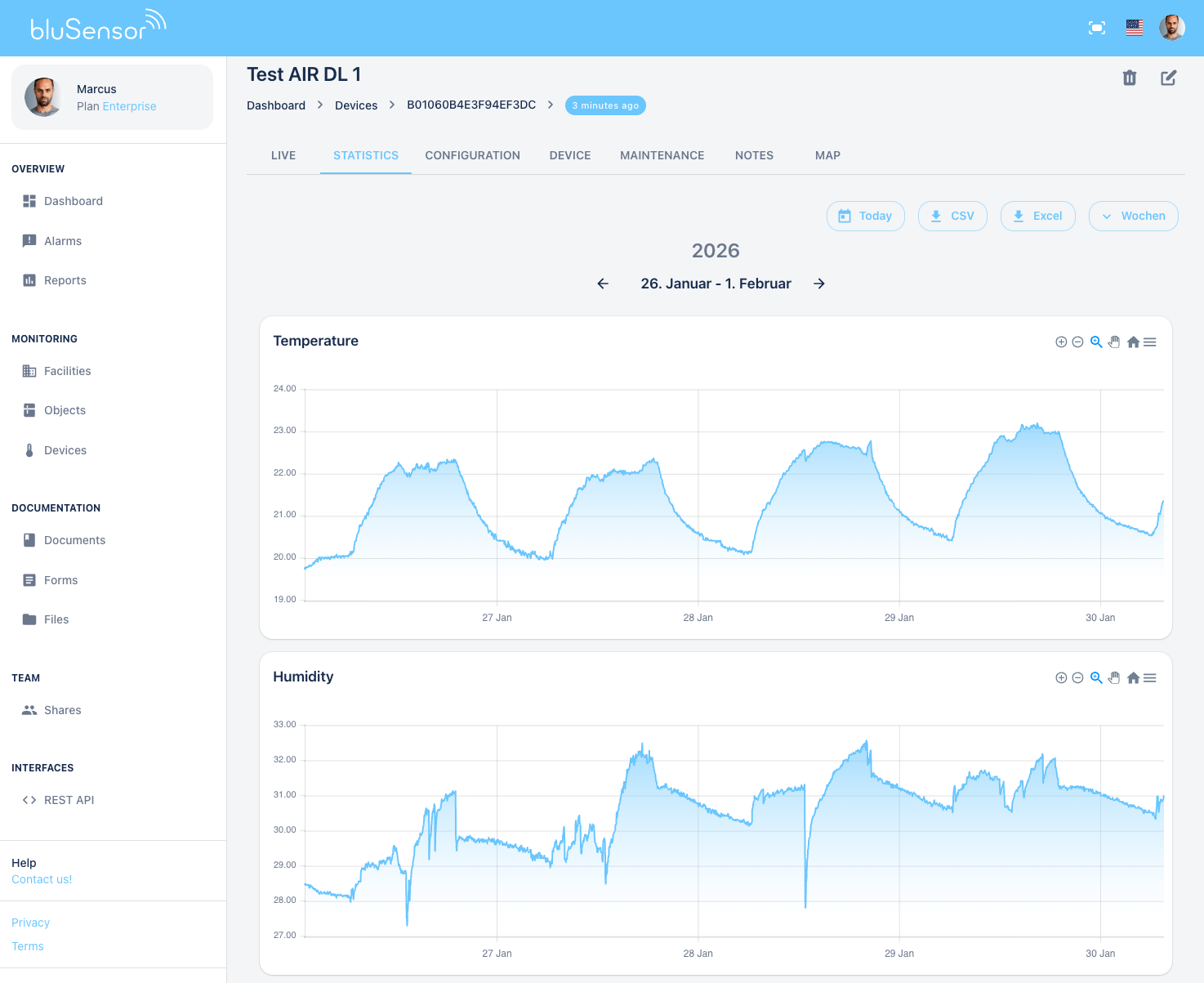

The bluSensor® Cloud Dashboard shows all your sensor readings in real time.
In addition to our own bluSensor® BLE Gateways, we also support compatible LoRaWAN gateways from other manufacturers. LoRaWAN is ideal for long range and locations without Wi-Fi infrastructure. Sensor data is transmitted to the bluSensor® Cloud via the LoRaWAN network.
| Model | Connectivity | Power Supply |
|---|---|---|
| bluSensor® BLE Gateways | ||
| BSP03GW (Pro) | BLE 4.2 (Scan + GATT), Wi-Fi 802.11 b/g/n (2.4 GHz), TLS | Power Supply / Terminal Block 12–24V DC |
| BSP02GW (Mini) | BLE 4.2 (Scan + GATT), Wi-Fi 802.11 b/g/n (2.4 GHz), TLS | USB-A (5V) |
| Compatible LoRaWAN Gateways | ||
| BSPE-MIL-UG65 | LoRaWAN (EU868/US915), Ethernet, Wi-Fi, 4G/LTE | PoE / DC 12V |
| BSPE-MIL-UG63 | LoRaWAN (EU868/US915), Ethernet, Wi-Fi, 4G/LTE | PoE / DC 12V |
| BSPE-TEK-T | LoRaWAN (EU868/US915), Ethernet, 4G/LTE | PoE / DC |
What is the bluSensor® Gateway?

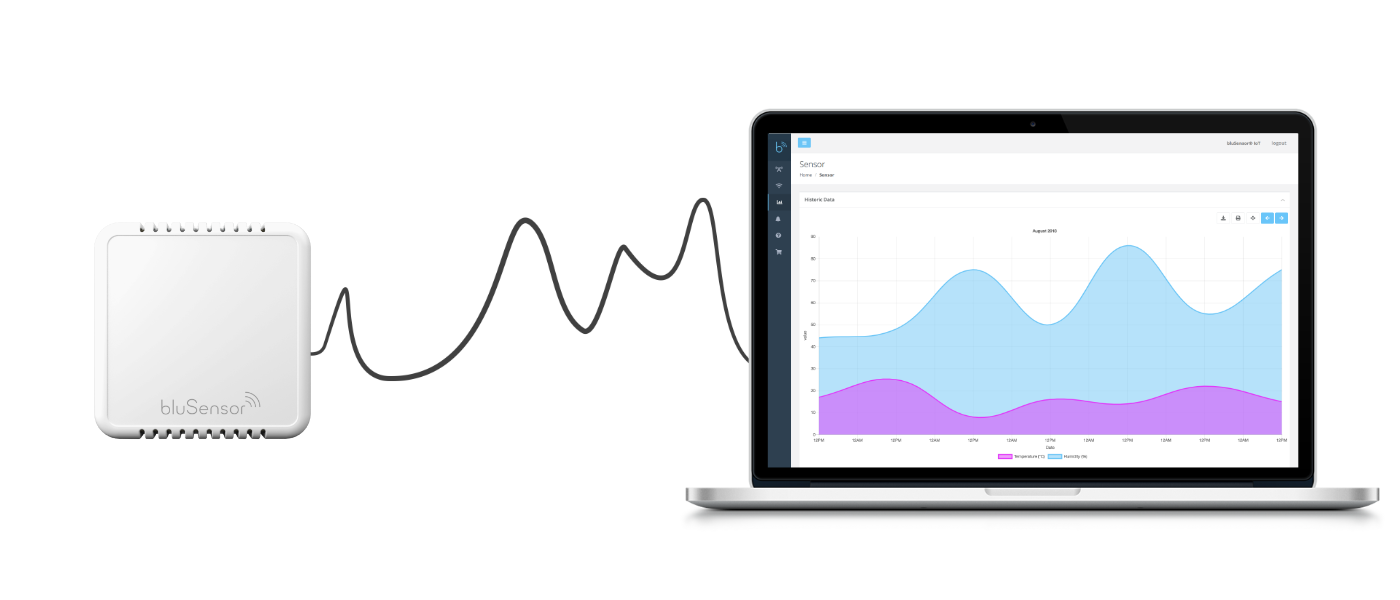

The bluSensor® Gateway is a hardware device that connects Bluetooth Low Energy sensors to the bluSensor® Cloud via Wi-Fi.
Which gateway models are available?
There are two models: The BSP03GW and the BSP02GW from our mini series. Both models support BLE advertising scan and GATT connection.
Which Wi-Fi frequencies are supported?
The gateway supports Wi-Fi on the 2.4 GHz band. 5 GHz is not supported.
Which sensors are supported?
The BLE gateway supports all bluSensor® BLE sensors via advertising scan and GATT connection. Compatible LoRaWAN sensors are supported via LoRaWAN gateways.
Are third-party gateways supported?
Yes, the bluSensor® Cloud supports compatible LoRaWAN gateways from other manufacturers in addition to our own BLE gateways.
Connect your Bluetooth sensors to the cloud.
